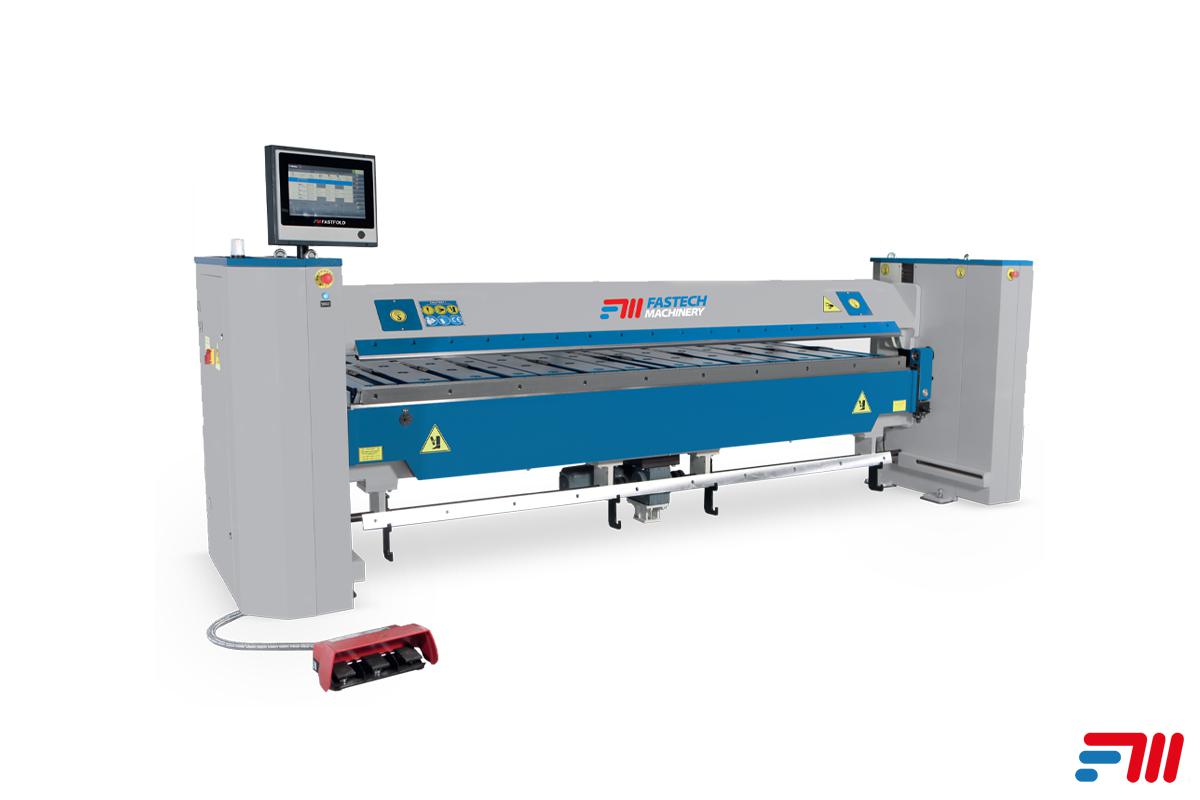

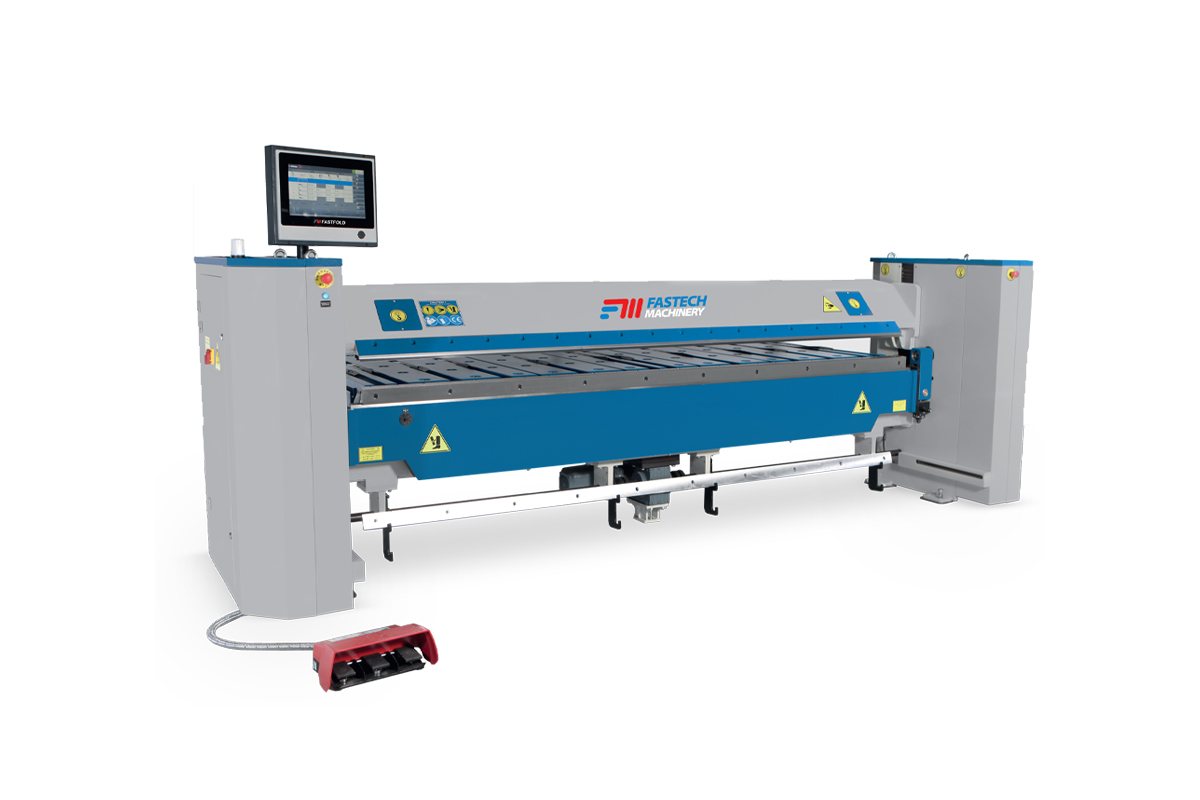

FMC CNC Motorized Folder

Model Sheet Length
(mm)
Steel
(mm)
Stainless
(mm)
Aluminium
(mm)
Axis Speed
( Y°/ Z / X mm ) /sn
Motor Power
( Y / Z / X ) kW
Dimensions W / L / H
(mm)
Weight
(kg)
FMC 1530 1550 3 2 4 65 / 70 / 200 1,5 / 1,1 / 0,4 1350/2500/1700 1550
FMC 2025 2050 2,5 1,5 3,5 65 / 70 / 200 1,5 / 1,1 / 0,4 1350/3000/1700 1700
FMC 2520 2550 2 1,2 3 65 / 70 / 200 1,5 / 1,1 / 0,4 1350/3500/1700 1850
FMC 3215 3200 1,5 1 2,5 65 / 70 / 200 1,5 / 1,1 / 0,4 1350/4200/1700 2150

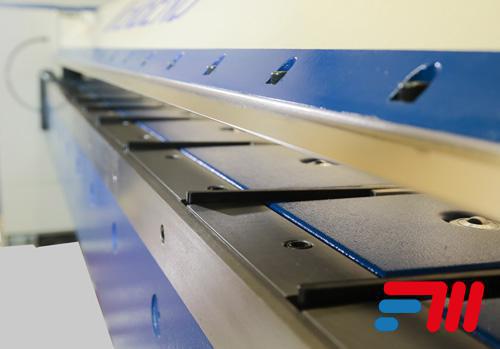

  • 160 mm clamping beam stroke with vertical movement and 20° sharp nose tool
  • 0-135° folding angle

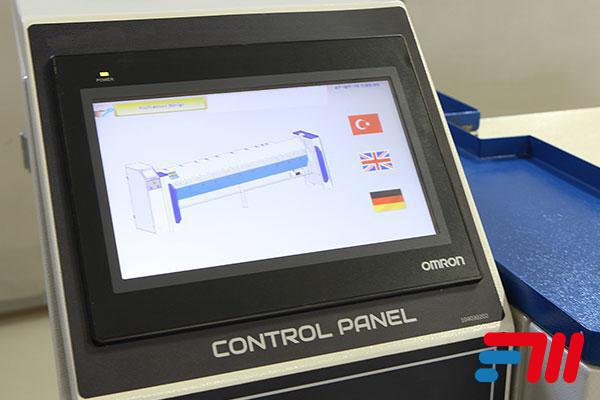

  • Erfold Basic CNC line by line software on 10.6” touchscreen controller

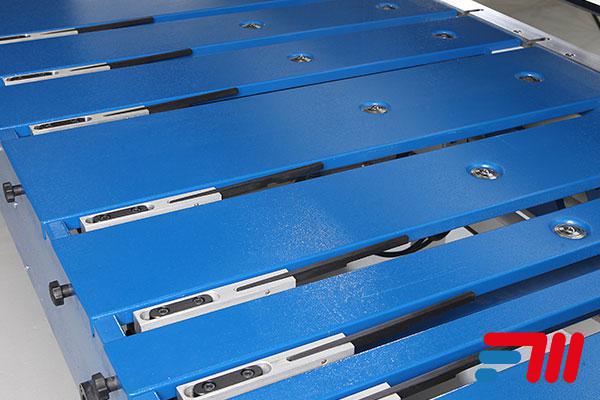

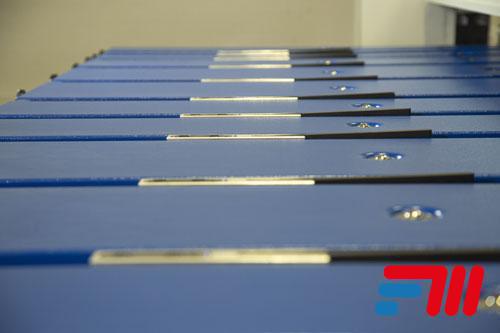

  • 750 mm motorized back gauge system and sheet support table with ball casters

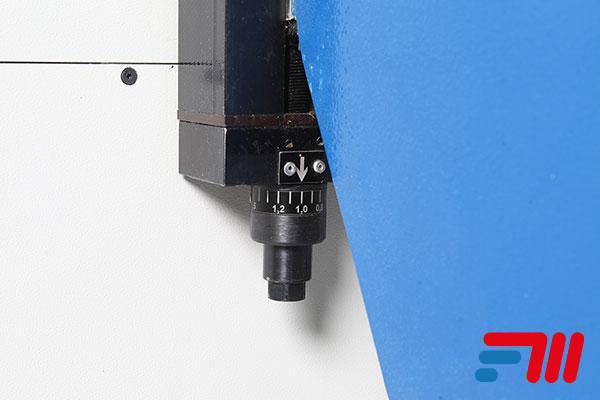

  • Manual folding beam adjustment as 35 mm

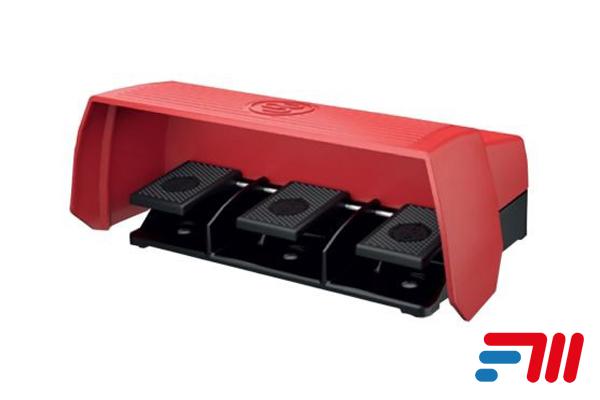

  • 3 swtich control foot pedal
  • Front light barriers





  • 1000 / 1500 mm motorized back gauge system and sheet support table with ball casters

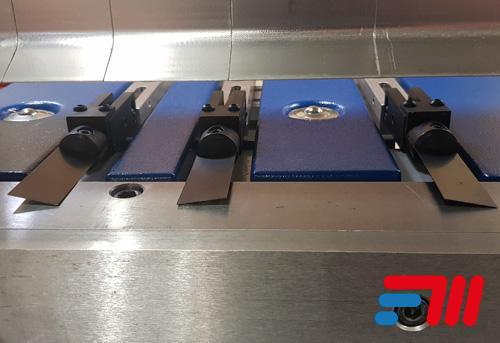

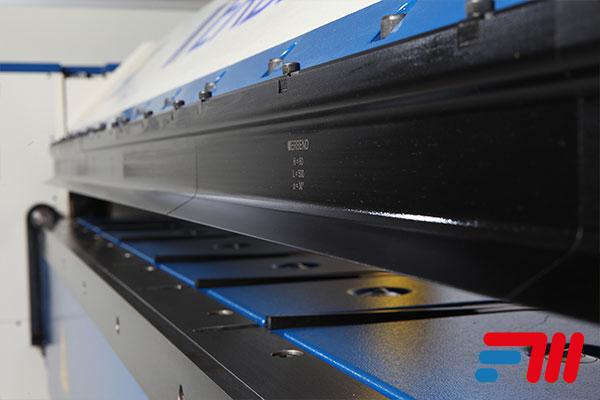

  • 60 / 90 mm high segmented goat foot tools
  • Solid lower beam tool with feather grooves
