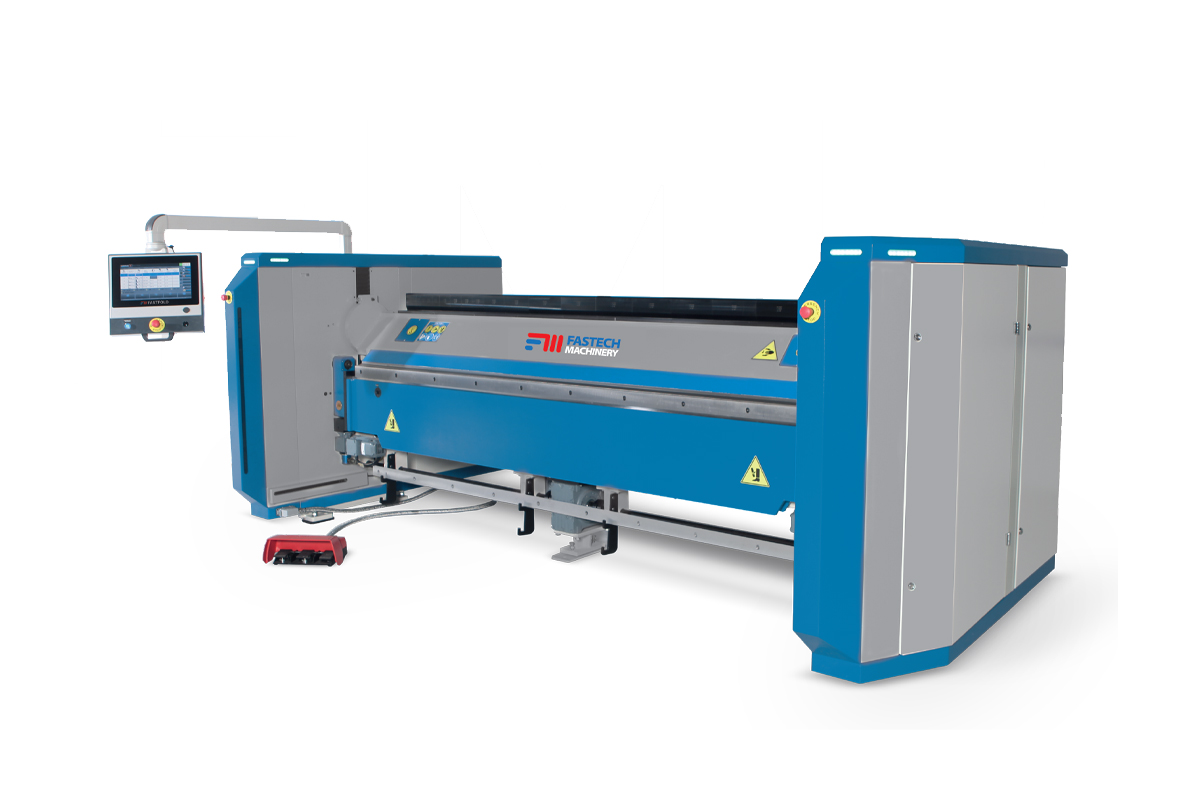

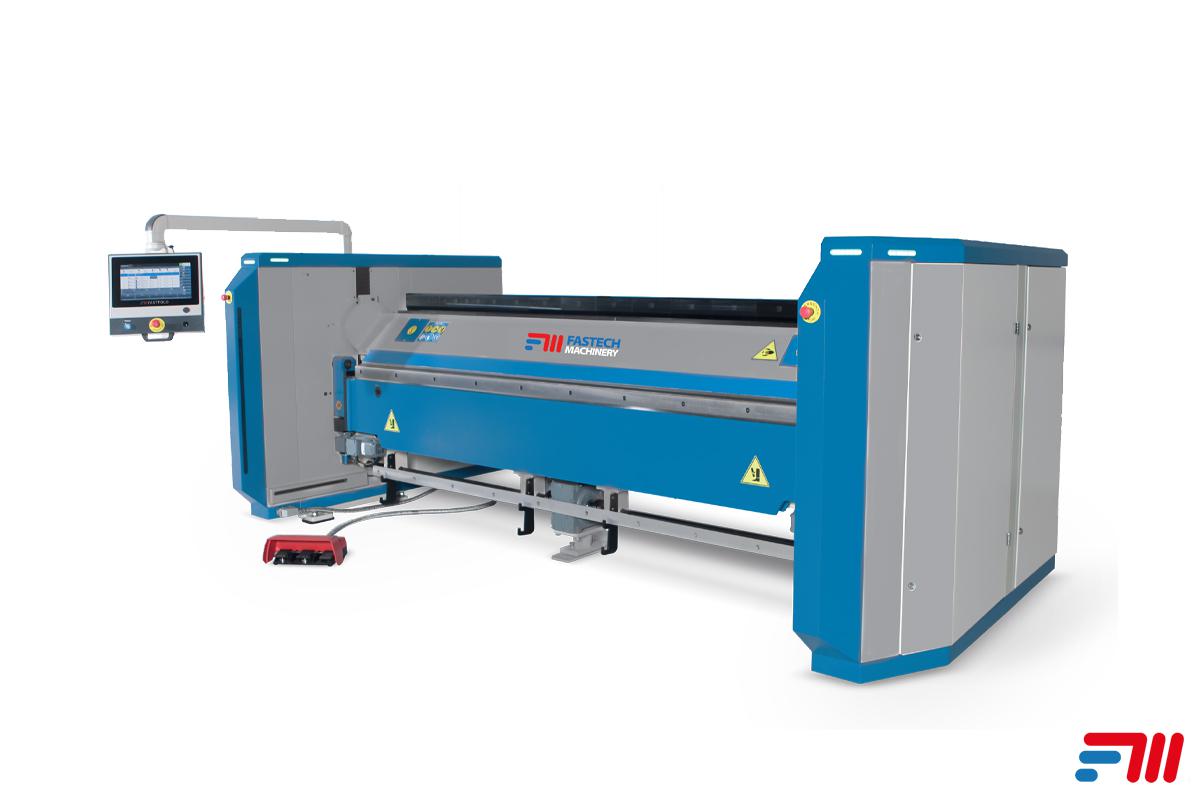

FMD Combi CNC Motorized Folder

Model Sheet Length
(mm)
Steel
(mm)
Stainless
(mm)
Aluminium
(mm)
Axis Speed
( Y°/ Z / X mm ) /sn
Motor Power
( Y / Z / X ) kW
Dimensions W / L / H
(mm)
Weight
(kg)
FMD 2525 2550 2,5 1,5 3,5 65 / 60 / 200 3 / 1,5 / 0,4 2150/3850/1900 4650
FMD 3220 3200 2 1,2 3 65 / 60 / 200 3 / 1,5 / 0,4 2500/4450/1900 5650
FMD 4215 4200 1,5 1 2 65 / 60 / 200 3 / 1,5 / 0,4 2500/5450/1900 6850

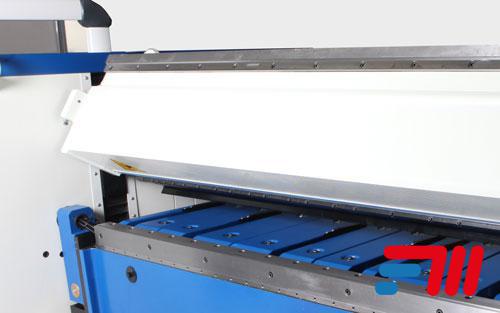

  • 160 mm stroke capacity on 180° rotating combi clamping beam with 2 tool stations as 90 mm high segmented goat foot tools on station 1 and  20° single piece sharp nose tool on station 2

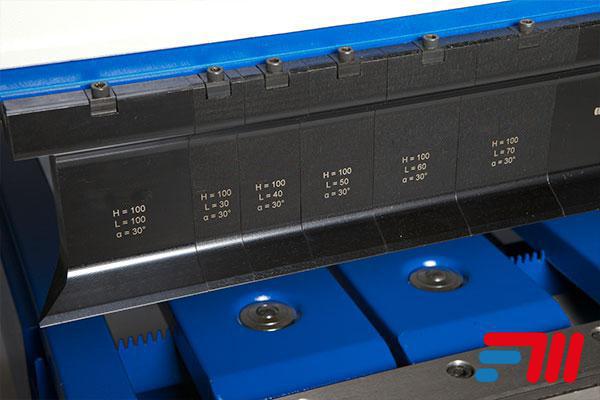

  • 90 mm high segmented goat foot tools, 60 HRC laser surface hardened, darkened against corrosion and laser marked

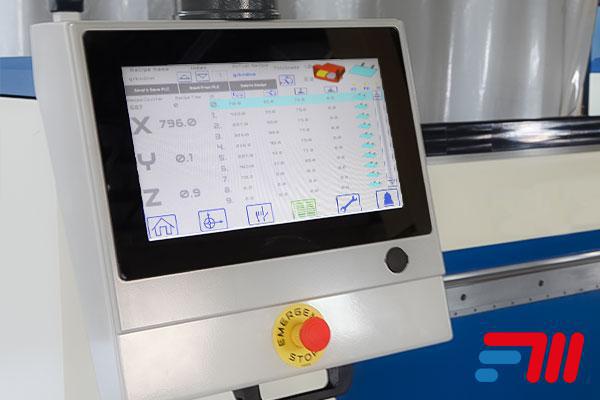

  • Erfold Basic CNC line by line control software on 15.6 ” touchscreen controller with swivel arm

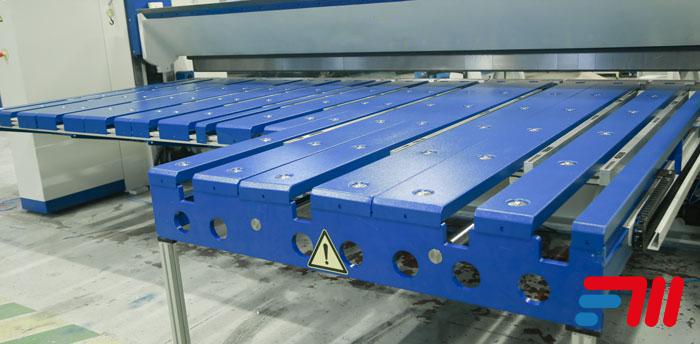

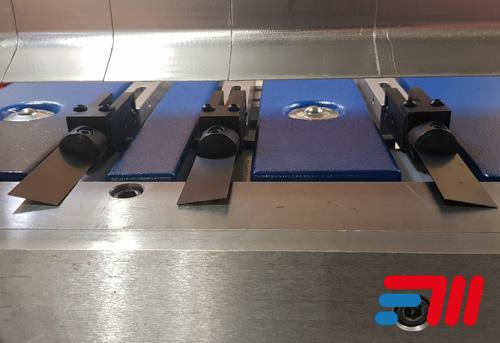

  • 1000 mm motorized back gauge system and sheet support table with ball casters

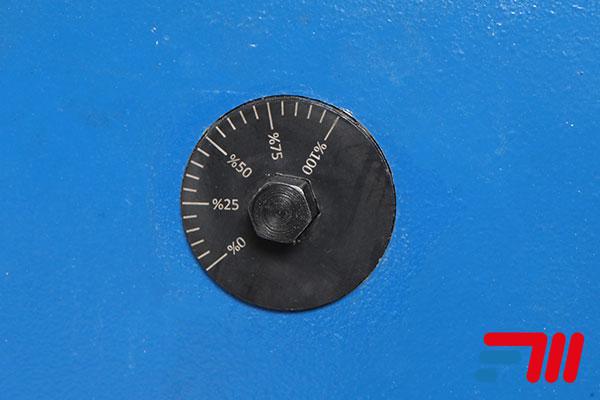

  • Manual folding beam adjustment as 80 mm

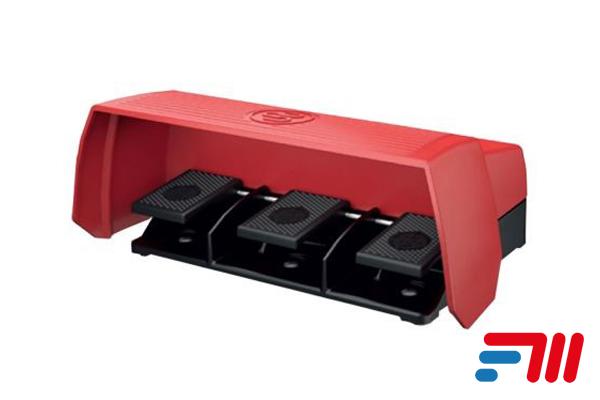

  • 3 swtich control foot pedal

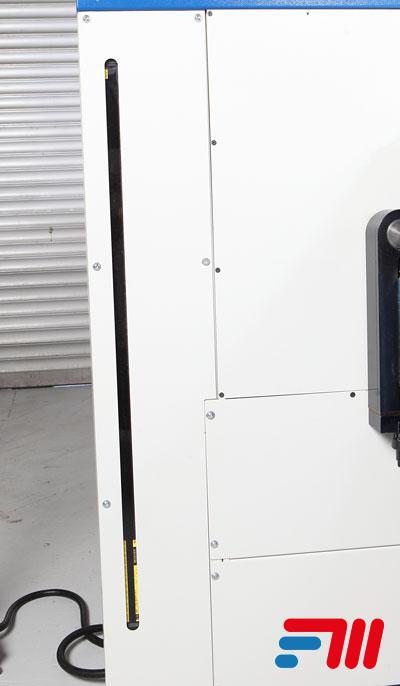

  • Front light barriers

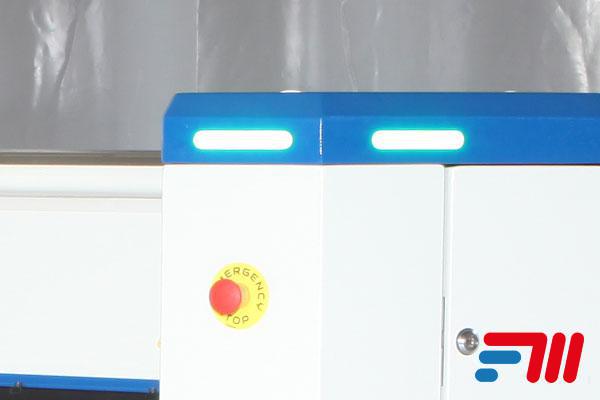

  • Led function lights







  • 1500 / 2000 / 3000 / 4000 mm motorized back gauge system and sheet support table
  • L shape back gauge system (metal or with brushes)
  • U shape back gauge system (metal or with brushes)
  • Solid lower beam tool with feather grooves

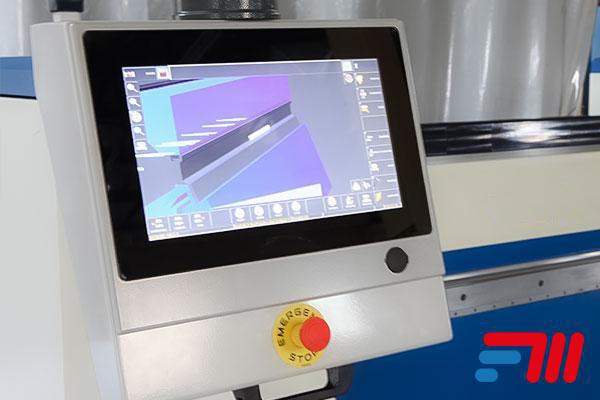

  • Erfold Advanced / 3D CNC graphic control software on touchscreen controller with swivel arm

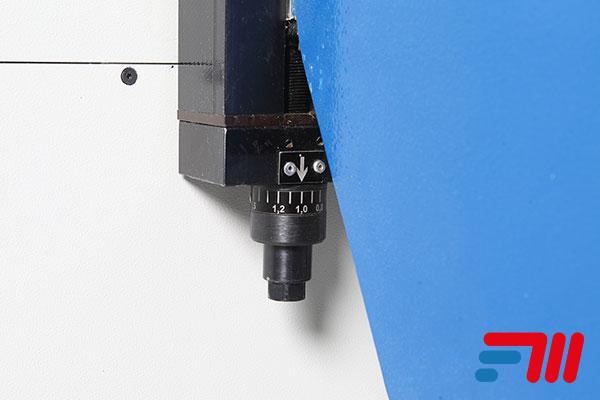

  • Manual crowning system

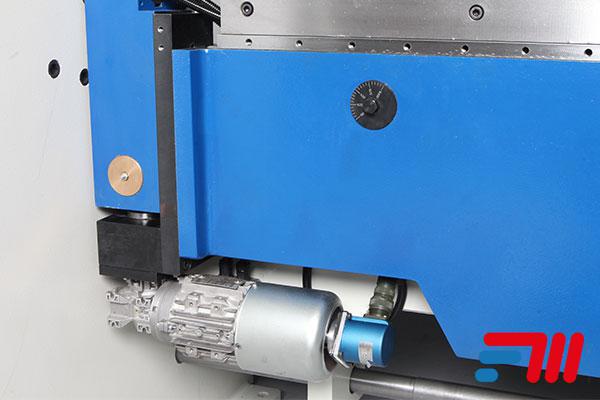

  • Motorized folding beam adjustment as 80 mm
